| Place of Origin: | CHINA |
|---|---|
| Brand Name: | MHC AP |
| Certification: | ISO9001 |
| Model Number: | 13505-54020 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Neutral Packing or As Requirement |
| Delivery Time: | 2-5days mainly depends on the quantity |
| Payment Terms: | T/T Western Union Paypal |
| Supply Ability: | 1000pcs/month |
| Part NO.: | 13505-54020 | Part Name: | Belt Tensioner Assy. |
|---|---|---|---|
| Car Model: | TOYOTA LAND HIACE | Material: | Aluminum |
| Outer Diameter: | 62 Mm | Height: | 35 Mm |
| High Light: | 13505-54021 Auto Belt Tensioner,13505-54020 Auto Belt Tensioner |
||

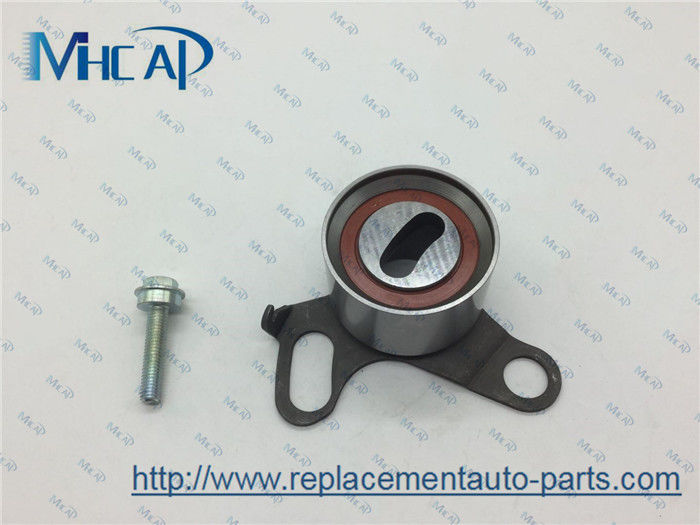

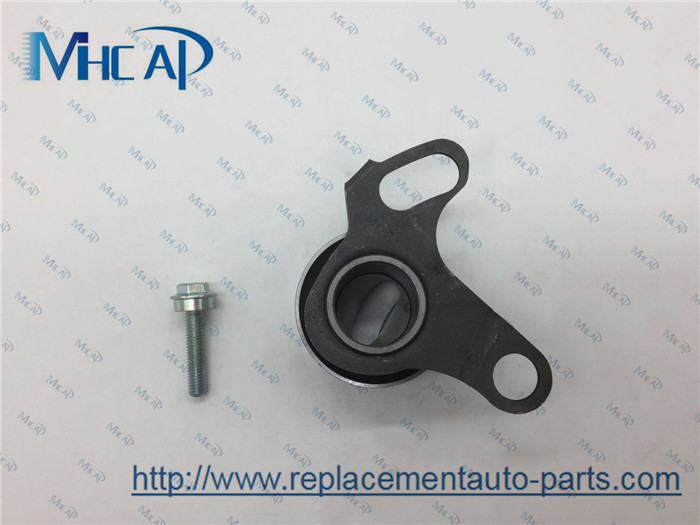

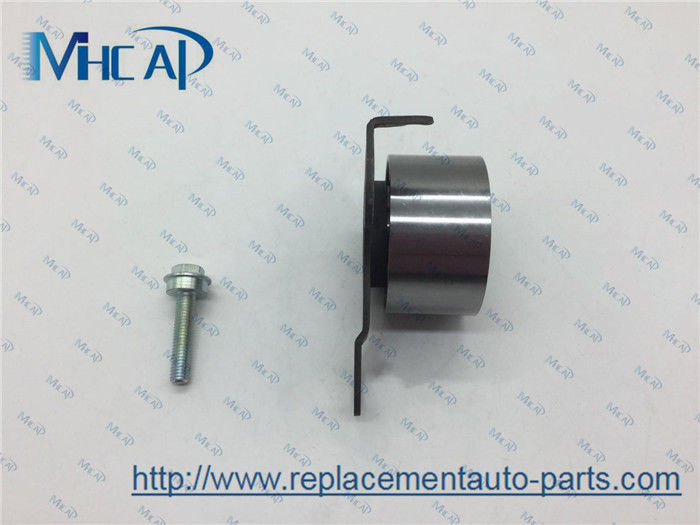

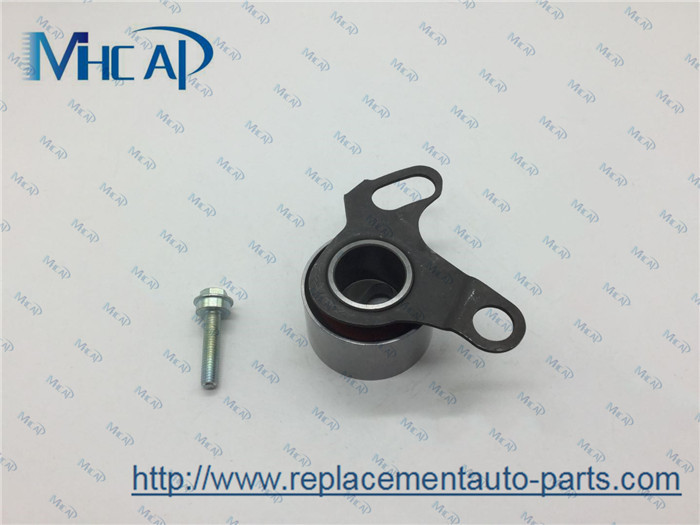

13505-54020 13505-54021 Belt Tensioner Pulley Assembly For TOYOTA LAND HIACE
Specifications:
Part Name: Belt Tensioner Assy.
Part Number: 13505-54020 13505-54021
Car Model: TOYOTA LAND HIACE
Size: OEM Standard
Conditon: Brand New
Packing: Poly Bag Inside , Box outer
Sample: Available
Guarantee: 1 Year
Applicable Car Model:
| Model | Enigne | CC | KW | Cylinder | Type | Year |
| TOYOTA HIACE II Box (LH5_, YH7_, LH7_, LH6_, YH6_, YH5_) 1982/12-1989/11 | ||||||
| HIACE II Box (LH5_, YH7_, LH7_, LH6_, YH6_, YH5_) 2.4 D (LH7_, LH6_, LH5_) | 2Y | 2446 | 55 | 4 | Box | 1984-1989 |
| TOYOTA HIACE III Box (YH7_, LH6_, LH7_, LH5_, YH5_, YH6_) 1987/08-2006/07 | ||||||
| HIACE III Box (YH7_, LH6_, LH7_, LH5_, YH5_, YH6_) 2.4 D (LH10_, LH11_) | 2L | 2446 | 55 | 4 | Box | 1989-1995 |
| HIACE III Box (YH7_, LH6_, LH7_, LH5_, YH5_, YH6_) 2.4 D 4WD (LXH22_, LXH12_, LH114_, LH112_, LH104_,... | 2L | 2446 | 55 | 4 | Box | 1989-1999 |
| TOYOTA HIACE III Wagon (_H1_) 1987/08-2004/12 | ||||||
| HIACE III Wagon (_H1_) 2.4 D (LH102) | 2L | 2446 | 55 | 4 | Bus | 1989-1995 |
| HIACE III Wagon (_H1_) 2.4 D (LH5_, LH6_, LH7_, LH10_, LH11_) | 2L | 2446 | 57 | 4 | Bus | 1987-2004 |
| HIACE III Wagon (_H1_) 2.4 D 4WD (LH51_, LH61_, LH66_, LH71_) | 2L | 2446 | 55 | 4 | Bus | 1987-1995 |
| TOYOTA HIACE IV Box (LXH1_, RZH1_, LH1_) 1995/08- | ||||||
| HIACE IV Box (LXH1_, RZH1_, LH1_) 2.4 D (LXH12_, LXH22_) | 2L | 2446 | 58 | 4 | Box | 1995-2006 |
| HIACE IV Box (LXH1_, RZH1_, LH1_) 2.4 TD (LXH12_, LXH22_) | 2L-T | 2446 | 66 | 4 | Box | 1995-2006 |
| HIACE IV Box (LXH1_, RZH1_, LH1_) 2.4 TD 4WD (LXH18_, LXH28_) | 2L-T | 2446 | 66 | 4 | Box | 1995-2006 |
| TOYOTA HIACE IV Bus (_H1_, _H2_) 1995/08- | ||||||
| HIACE IV Bus (_H1_, _H2_) 2.4 D (LH10_, LH11_, LXH12_, LXH22_) | 2L | 2446 | 58 | 4 | Bus | 1995-2006 |
| HIACE IV Bus (_H1_, _H2_) 2.4 D (LH10_, LH11_, LXH12_) | 2L-T | 2446 | 55 | 4 | Bus | 1999-2006 |
| HIACE IV Bus (_H1_, _H2_) 2.4 TD (LXH12_, LXH22_) | 2L-T | 2446 | 66 | 4 | Bus | 1995-2006 |
| HIACE IV Bus (_H1_, _H2_) 2.4 TD 4WD (H18/28) | 2L-T | 2446 | 66 | 4 | Bus | 1995-2006 |
| TOYOTA HILUX V Pickup (_N_, KZN1_, VZN1_) 1988/09-1999/01 | ||||||
| HILUX V Pickup (_N_, KZN1_, VZN1_) 2.4 D | 2L | 2446 | 58 | 4 | Pickup | 1995-1997 |
| HILUX V Pickup (_N_, KZN1_, VZN1_) 2.4 D (LN5_, LN8_, LN9_, LN14_, LN15_) | 2L | 2446 | 59 | 4 | Pickup | 1992-1997 |
| HILUX V Pickup (_N_, KZN1_, VZN1_) 2.4 D (LN85_) | 2L | 2446 | 61 | 4 | Pickup | 1988-1997 |
| HILUX V Pickup (_N_, KZN1_, VZN1_) 2.4 D 4WD (LN1_) | 2L | 2446 | 61 | 4 | Pickup | 1988-1997 |
| HILUX V Pickup (_N_, KZN1_, VZN1_) 2.4 D 4WD (LN110_) | 2L | 2446 | 58 | 4 | Pickup | 1994-1997 |
| TOYOTA HILUX VI Pickup (_N1_) 1994/08-2006/03 | ||||||
| HILUX VI Pickup (_N1_) 2.4 D (LN150, LN145) | 2L | 2446 | 55 | 4 | Pickup | 1997-2006 |
| HILUX VI Pickup (_N1_) 2.4 TD 4WD (LN165_, LN170_, LN190_) | 2L-T | 2446 | 66 | 4 | Pickup | 1998-2002 |
| TOYOTA LAND CRUISER (_J7_) 1984/03- | ||||||
| LAND CRUISER (_J7_) 2.4 TD (LJ70) | 2L-T | 2446 | 66 | 4 | Closed Off-Road Vehicle | 1990-1993 |
| TOYOTA LAND CRUISER Hardtop (_J7_) 1990/01-1996/05 | ||||||
| LAND CRUISER Hardtop (_J7_) 2.4 TD (LJ70_) | 2L-T | 2446 | 66 | 4 | Open Off-Road Vehicle | 1990-1996 |
| VOLKSWAGEN | ||||||
| VOLKSWAGEN TARO 1989/04-1997/03 | ||||||
| TARO 2.4 D | 2L | 2446 | 61 | 4 | Pickup | 1989-1997 |
| TARO 2.4 D | 2L | 2446 | 59 | 4 | Pickup | 1991-1994 |
| TARO 2.4 D | 2L | 2446 | 58 | 4 | Pickup | 1994-1997 |
| TARO 2.4 D 4x4 | 2L | 2446 | 61 | 4 | Pickup | 1989-1997 |
| TARO 2.4 D 4x4 | 2L | 2446 | 58 | 4 | Pickup | 1994-1997 |
What is the Belt Tensioner all about?
A Drive Belt Tensioner is a pulley mounted to either a spring mechanism or to an adjustable pivot point that is used to keep constant tension on your serpentine belt. That is the big long belt in the front of your engine.The tensioner rides on the outside surface of the belt to put pressure, or tension, on the belt and against the pulleys that drive things like the alternator, power steering, air conditioner, etc.
Tensioners usually come with pulleys; they are normally replaced together. Also, when replacing a tensioner, the drive belt usually must be removed.
How does Belt Tensioner Work?
The air conditioning, power steering, and alternator in your vehicle are given power through the drive belt. The belt is attached to both the crankshaft and these systems, and transfers power from the engine to drive each of these components. The drive belt tensioner is responsible for keeping the tension in the drive belt, which allows it to continue moving and transferring power. When the drive belt tensioner fails, the tension in the drive belt will begin to diminish, and the vehicle will not operate as well.
Our recommendation:
Your drive belt tensioner should always be inspected when your drive belt is serviced. During routine maintenance and inspection, your drive belt system should be reviewed to make sure that all the components are in working order. The drive belt tensioner will usually last longer than the drive belts, so as long as your tensioner is inspected or replaced when your drive belts are, your belt system should remain in good shape.
