| Place of Origin: | CHINA |
|---|---|
| Brand Name: | MHC AP |
| Certification: | ISO9001 |
| Model Number: | 8K0407694N |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Neutral Packing or As Requirement |
| Delivery Time: | 1- work days, mainly depends on the quantity |
| Payment Terms: | T/T Western Union Paypal |
| Supply Ability: | 5000pcs/month |
| Part NO.: | 8K0407694N | Part Name: | Control Arm |
|---|---|---|---|
| Car Model: | AUDI | Size: | OEM Standard |
| Position: | Front Axle, Right, Lower, Rear | ||
| High Light: | 8K0407694R Audi Control Arm,OEM Audi Control Arm |
||

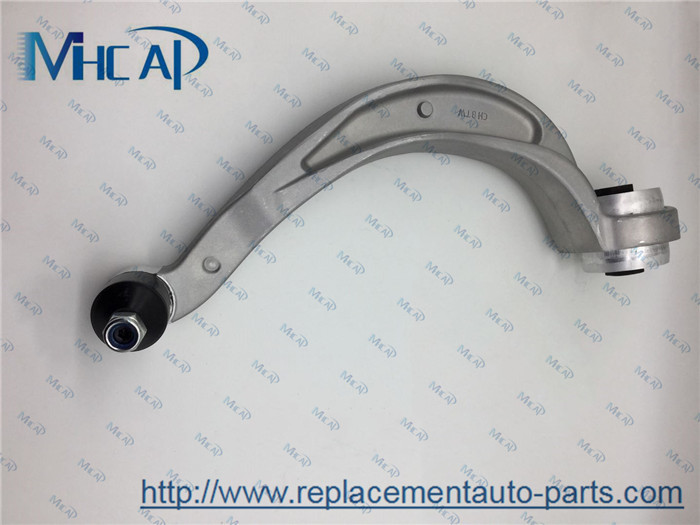

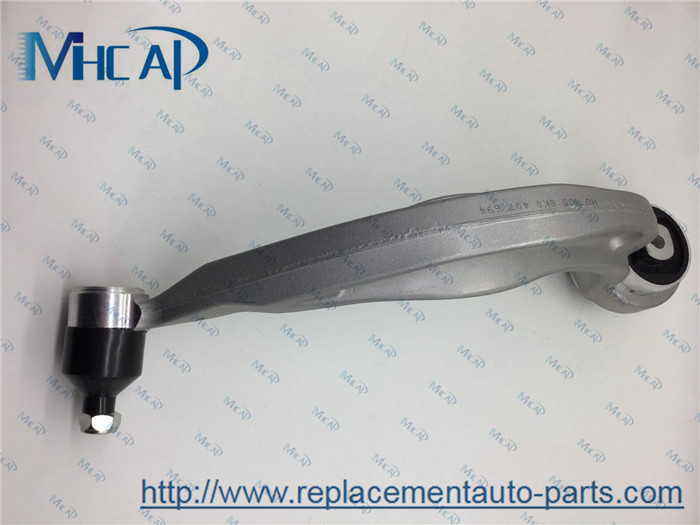

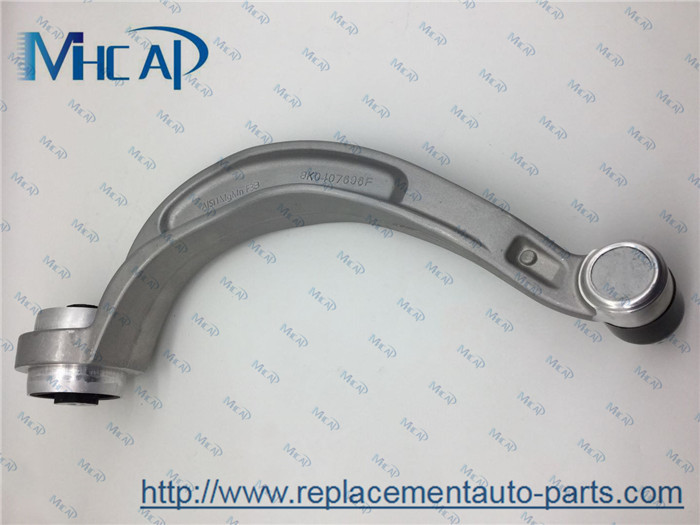

OEM 8K0407694N 8K0407694R AUDI Control Arm Front Axle, Right, Lower, Rear
Specifications:
| Part Name: | Control Arm |
| Part Number: |
8K0407694N 8K0407694R 8K0407694F 8K0407694K |
| Car Model: | AUDI |
| Position: |
Front Axle, Right, Lower, Rear |
| Packing: | Poly Bag |
| Size: | OEM Standard |
| Conditon: | Brand New |
| Sample: | Available |
| Certification: | ISO9001 |
| Guarantee: | 6 Months |
| Payment: | T/T, Western Union, ,etc. |
| Shipment: | By sea,by air or express,DHL,EMS,TNT,etc. |
| Delivery: | 2-5 work days, mainly depends on the quantity. |
Car Model :
| Model | Enigne | CC | KW | Cylinder | Type | Year |
| AUDI A4 (8K2, B8) 2007/08-2015/12 | ||||||
| A4 (8K2, B8) 1.8 TFSI | CABB | 1798 | 118 | 4 | Saloon | 2007-2012 |
| A4 (8K2, B8) 1.8 TFSI | CABA | 1798 | 88 | 4 | Saloon | 2008-2015 |
| A4 (8K2, B8) 1.8 TFSI | CJEB | 1798 | 125 | 4 | Saloon | 2011-2015 |
| A4 (8K2, B8) 1.8 TFSI quattro | CDHB | 1798 | 118 | 4 | Saloon | 2008-2012 |
| A4 (8K2, B8) 1.8 TFSI quattro | CJEB | 1798 | 125 | 4 | Saloon | 2011-2015 |
| A4 (8K2, B8) 2.0 TDI | CAGA | 1968 | 105 | 4 | Saloon | 2007-2015 |
| A4 (8K2, B8) 2.0 TDI | CAGB | 1968 | 100 | 4 | Saloon | 2007-2015 |
| A4 (8K2, B8) 2.0 TDI | CAHA | 1968 | 125 | 4 | Saloon | 2008-2012 |
| A4 (8K2, B8) 2.0 TDI | CAGC | 1968 | 88 | 4 | Saloon | 2008-2015 |
| A4 (8K2, B8) 2.0 TDI | CAHB | 1968 | 120 | 4 | Saloon | 2008-2015 |
| A4 (8K2, B8) 2.0 TDI | CGLC | 1968 | 130 | 4 | Saloon | 2011-2015 |
| A4 (8K2, B8) 2.0 TDI quattro | CAHA | 1968 | 125 | 4 | Saloon | 2008-2012 |
| A4 (8K2, B8) 3.2 FSI quattro | CALA | 3197 | 195 | 6 | Saloon | 2007-2012 |
| A4 (8K2, B8) S4 quattro | CAKA | 2995 | 245 | 6 | Saloon | 2008-2015 |
| AUDI A4 Allroad (8KH, B8) 2009/04-2016/05 | ||||||
| A4 Allroad (8KH, B8) 2.0 TDI quattro | CAHA | 1968 | 125 | 4 | Estate | 2009-2016 |
| A4 Allroad (8KH, B8) 2.0 TDI quattro | CAHB | 1968 | 120 | 4 | Estate | 2009-2016 |
| A4 Allroad (8KH, B8) 2.0 TDI quattro | CAGA | 1968 | 105 | 4 | Estate | 2009-2016 |
| A4 Allroad (8KH, B8) 2.0 TDI quattro | CAGB | 1968 | 100 | 4 | Estate | 2009-2016 |
| A4 Allroad (8KH, B8) 2.0 TDI quattro | CGLC | 1968 | 130 | 4 | Estate | 2011-2016 |
| A4 Allroad (8KH, B8) 2.0 TFSI quattro | CDNC | 1984 | 155 | 4 | Estate | 2009-2016 |
| A4 Allroad (8KH, B8) 3.0 TDI quattro | CCWA | 2967 | 176 | 6 | Estate | 2009-2012 |
| A4 Allroad (8KH, B8) 3.0 TDI quattro | CKVB | 2967 | 180 | 6 | Estate | 2012-2016 |
About Control Arm:
In automotive suspension, a control arm, also known as an A-arm, is a hinged suspension link between the chassis and the suspension upright or hub that carries the wheel.
The inboard (chassis) end of a control arm is attached by a single pivot, usually a rubber bushing. It can thus control the position of the outboard end in only a single degree of freedom, maintaining the radial distance from the inboard mount. Although not deliberately free to move, the single bushing does not control the arm from moving back and forth; this motion is constrained by a separate link or radius rod.
This is in contrast to the wishbone. Wishbones are triangular and have two widely spaced inboard bearings. These constrain the outboard end of the wishbone from moving back and forth, controlling two degrees of freedom, and without requiring additional links.
Most control arms form the lower link of a suspension. A few designs use them as the upper link, usually with a lower wishbone. The additional radius rod is then attached to the upper arm.
