| Place of Origin: | CHINA |
|---|---|
| Brand Name: | MHC AP |
| Certification: | ISO9001 |
| Model Number: | 51450-S04-003 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Neutral Packing or As Requirement |
| Delivery Time: | 1- work days, mainly depends on the quantity |
| Payment Terms: | T/T Western Union Paypal |
| Supply Ability: | 5000pcs/month |
| Part NO.: | 51450-S04-003 | Part Name: | Control Arm |
|---|---|---|---|
| Car Model: | HONDA | Size: | OEM Standard |
| Position: | Front Axle, Right, Upper | ||
| High Light: | 51450-S01-A02 Auto Control Arm,51450-S01-023 Auto Control Arm,51450-S04-003 Honda Control Arm |
||

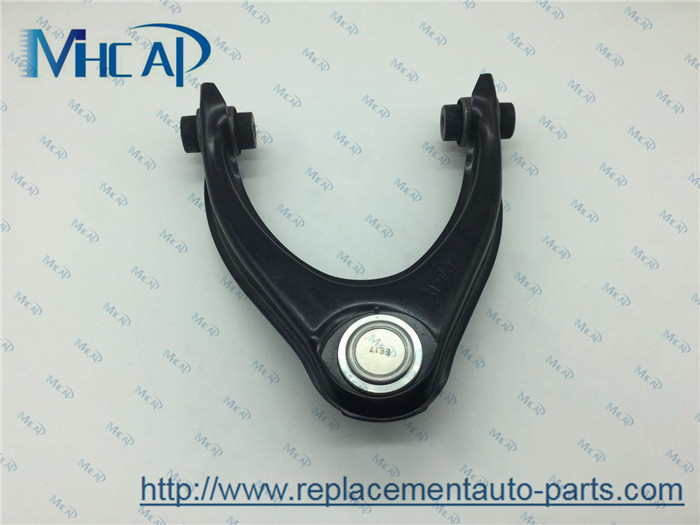

51450-S01-A02 51450-S01-023 Car Control Arm Front Axle, Right, Upper For HONDA CIVIC
Specifications:
| Part Name: | Control Arm |
| Part Number: |
51450-S01-A02 51450-S01-023 51450-S04-003 51450-S04-013 51450-S04-023 |
| Car Model: | HONDA CIVIC |
| Position: |
Front Axle, Right, Upper |
| Packing: | Poly Bag |
| Size: | OEM Standard |
| Conditon: | Brand New |
| Sample: | Available |
| Certification: | ISO9001 |
| Guarantee: | 6 Months |
| Payment: | T/T, Western Union, ,etc. |
| Shipment: | By sea,by air or express,DHL,EMS,TNT,etc. |
| Delivery: | 2-5 work days, mainly depends on the quantity. |
About Control Arm:
In automotive suspension, a control arm, also known as an A-arm, is a hinged suspension link between the chassis and the suspension upright or hub that carries the wheel.
The inboard (chassis) end of a control arm is attached by a single pivot, usually a rubber bushing. It can thus control the position of the outboard end in only a single degree of freedom, maintaining the radial distance from the inboard mount. Although not deliberately free to move, the single bushing does not control the arm from moving back and forth; this motion is constrained by a separate link or radius rod.
This is in contrast to the wishbone. Wishbones are triangular and have two widely spaced inboard bearings. These constrain the outboard end of the wishbone from moving back and forth, controlling two degrees of freedom, and without requiring additional links.
Most control arms form the lower link of a suspension. A few designs use them as the upper link, usually with a lower wishbone. The additional radius rod is then attached to the upper arm.
Car Model :
| Model | Enigne | CC | KW | Cylinder | Type | Year |
| HONDA CIVIC VI Aerodeck (MB, MC) 1998/04-2001/02 | ||||||
| CIVIC VI Aerodeck (MB, MC) 1.4 16V (MB8) | D14A7 | 1396 | 55 | 4 | Estate | 1998-2001 |
| CIVIC VI Aerodeck (MB, MC) 1.4 16V (MB8) | D14A8 | 1396 | 66 | 4 | Estate | 1998-2001 |
| CIVIC VI Aerodeck (MB, MC) 1.5 16V (MB9) | D15Z8 | 1493 | 84 | 4 | Estate | 1998-2001 |
| CIVIC VI Aerodeck (MB, MC) 1.6 16V (MC1) | D16B2 | 1590 | 85 | 4 | Estate | 1998-2001 |
| CIVIC VI Aerodeck (MB, MC) 1.8 16V (MC2) | B18C4 | 1797 | 124 | 4 | Estate | 1998-2001 |
| CIVIC VI Aerodeck (MB, MC) 2.0 i D (MC3) | 20T2N | 1994 | 77 | 4 | Estate | 1998-2001 |
| HONDA CIVIC VI Coupe (EJ, EM1) 1996/03-2000/12 | ||||||
| CIVIC VI Coupe (EJ, EM1) 1.6 i | D16Y7 | 1590 | 77 | 4 | Coupe | 1996-2000 |
| CIVIC VI Coupe (EJ, EM1) 1.6 i Vtec | B16A2 | 1595 | 118 | 4 | Coupe | 1999-2000 |
| CIVIC VI Coupe (EJ, EM1) 1.6 i Vtec (EM1) | D16Y8 | 1590 | 92 | 4 | Coupe | 1996-2000 |
| HONDA CIVIC VI Fastback (MA, MB) 1994/09-2001/02 | ||||||
| CIVIC VI Fastback (MA, MB) 1.4 16V (MB2) | D14A7 | 1396 | 55 | 4 | Hatchback | 1997-2001 |
| CIVIC VI Fastback (MA, MB) 1.4 16V (MB2) | D14A8 | 1396 | 66 | 4 | Hatchback | 1997-2001 |
| CIVIC VI Fastback (MA, MB) 1.5 16V (MB3) | D15Z8 | 1493 | 84 | 4 | Hatchback | 1997-2001 |
| CIVIC VI Fastback (MA, MB) 1.6 | D16W4 | 1590 | 92 | 4 | Hatchback | 1998-2000 |
| CIVIC VI Fastback (MA, MB) 1.6 16V (MB4) | D16B2 | 1590 | 85 | 4 | Hatchback | 1997-2001 |
| CIVIC VI Fastback (MA, MB) 1.6 VTi | B16A2 | 1595 | 118 | 4 | Hatchback | 1997-2001 |
| CIVIC VI Fastback (MA, MB) 1.8 16V (MB6) | B18C4 | 1797 | 124 | 4 | Hatchback | 1997-2001 |
| CIVIC VI Fastback (MA, MB) 2.0 i TD (MB7) | 20T2R | 1994 | 63 | 4 | Hatchback | 1997-2001 |
| HONDA CIVIC VI Hatchback (EJ, EK) 1995/10-2001/02 | ||||||
| CIVIC VI Hatchback (EJ, EK) 1.4 i (EJ9) | D14A3 | 1396 | 55 | 4 | Hatchback | 1995-2001 |
| CIVIC VI Hatchback (EJ, EK) 1.4 i S (EJ9) | D14A4 | 1396 | 66 | 4 | Hatchback | 1995-2001 |
| CIVIC VI Hatchback (EJ, EK) 1.5 i (EK3) | D15Z6 | 1493 | 84 | 4 | Hatchback | 1995-2001 |
| CIVIC VI Hatchback (EJ, EK) 1.6 | D16W4 | 1590 | 92 | 4 | Hatchback | 1998-2000 |
| CIVIC VI Hatchback (EJ, EK) 1.6 i (EK1) | D16Y5 | 1590 | 84 | 4 | Hatchback | 1995-2001 |
| CIVIC VI Hatchback (EJ, EK) 1.6 VTi (EK4) | B16A2 | 1595 | 118 | 4 | Hatchback | 1995-2001 |
| HONDA CIVIC VI Saloon (EJ, EK) 1995/06-2001/03 | ||||||
| CIVIC VI Saloon (EJ, EK) 1.4 | D14A4 | 1396 | 55 | 4 | Saloon | 1995-1998 |
| CIVIC VI Saloon (EJ, EK) 1.4 i (EJ9) | D14A4 | 1396 | 66 | 4 | Saloon | 1995-2001 |
| CIVIC VI Saloon (EJ, EK) 1.5 i (EK3) | D15Z6 | 1493 | 84 | 4 | Saloon | 1995-2001 |
| CIVIC VI Saloon (EJ, EK) 1.6 i Vtec | D16Y6 | 1590 | 92 | 4 | Saloon | 1995-2001 |
| CIVIC VI Saloon (EJ, EK) 1.6 VTi (EK4) | B16A2 | 1595 | 118 | 4 | Saloon | 1995-2001 |
