| Place of Origin: | CHINA |
|---|---|
| Brand Name: | MHC AP |
| Certification: | ISO9001 |
| Model Number: | 2213308907 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Neutral Packing or As Requirement |
| Delivery Time: | 1- work days, mainly depends on the quantity |
| Payment Terms: | T/T Western Union Paypal |
| Supply Ability: | 5000pcs/month |
| Part NO.: | 2213308907 | Part Name: | Control Arm |
|---|---|---|---|
| Position: | Front Axle, Left, Upper | Car Model: | MERCEDES BENZ |
| Size: | OEM Standard | ||
| High Light: | 2213300307 Car Control Arm,2213308907 Car Control Arm,Mercedes Benz Car Control Arm |
||

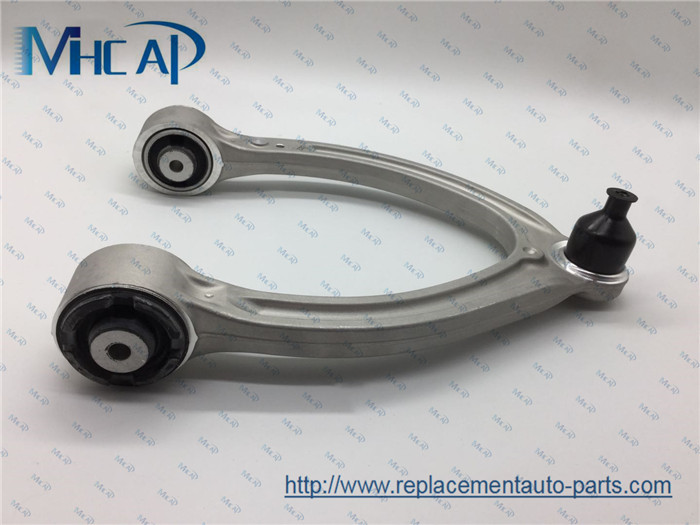

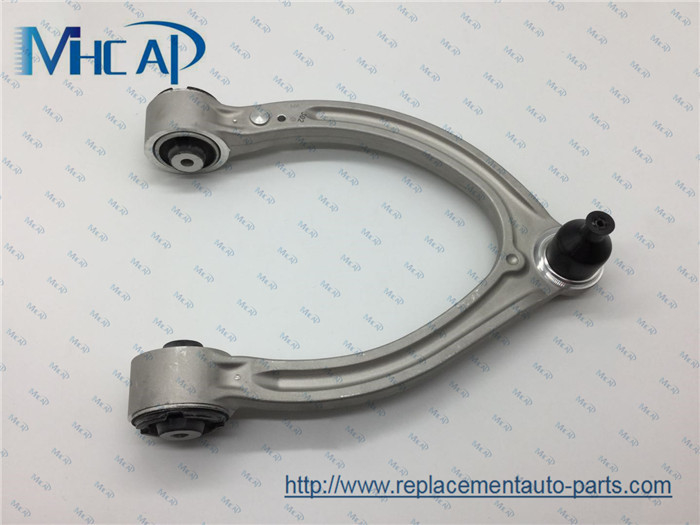

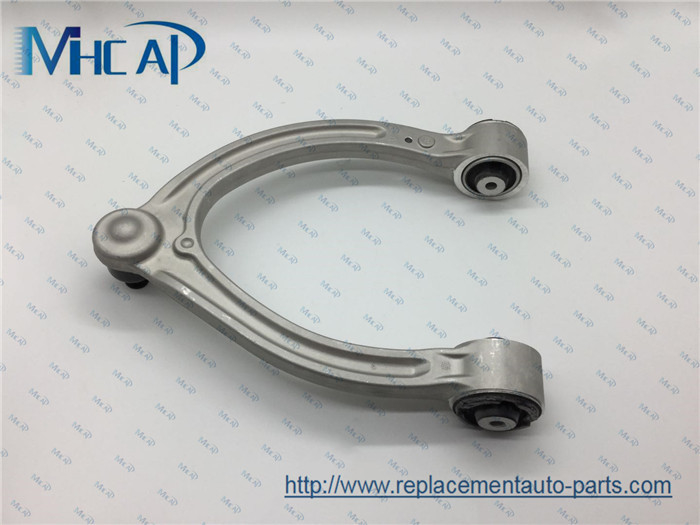

OEM 2213308907 2213300307 Car Control Arm Front Axle, Left, Upper MERCEDES BENZ
Specifications:
| Part Name: | Control Arm |
| Part Number: |
2213308907 2213300307 |
| Car Model: | MERCEDES BENZ |
| Position: |
Front Axle, Left, Upper |
| Packing: | Poly Bag |
| Size: | OEM Standard |
| Conditon: | Brand New |
| Sample: | Available |
| Certification: | ISO9001 |
| Guarantee: | 6 Months |
| Payment: | T/T, Western Union, ,etc. |
| Shipment: | By sea,by air or express,DHL,EMS,TNT,etc. |
| Delivery: | 2-5 work days, mainly depends on the quantity. |
About Control Arm:
In automotive suspension, a control arm, also known as an A-arm, is a hinged suspension link between the chassis and the suspension upright or hub that carries the wheel.
The inboard (chassis) end of a control arm is attached by a single pivot, usually a rubber bushing. It can thus control the position of the outboard end in only a single degree of freedom, maintaining the radial distance from the inboard mount. Although not deliberately free to move, the single bushing does not control the arm from moving back and forth; this motion is constrained by a separate link or radius rod.
This is in contrast to the wishbone. Wishbones are triangular and have two widely spaced inboard bearings. These constrain the outboard end of the wishbone from moving back and forth, controlling two degrees of freedom, and without requiring additional links.
Most control arms form the lower link of a suspension. A few designs use them as the upper link, usually with a lower wishbone. The additional radius rod is then attached to the upper arm.
Car Model :
| Model | Enigne | CC | KW | Cylinder | Type | Year |
| MERCEDES BENZ S-CLASS (W220) 1998/09-2005/08 | ||||||
| S-CLASS (W220) S 63 AMG | M 137.980 | 6258 | 326 | 12 | Saloon | 2001-2005 |
| MERCEDES BENZ S-CLASS (W221) 2005/09-2013/12 | ||||||
| S-CLASS (W221) S 320 CDI (221.022, 221.122) | OM 642.930 | 2987 | 173 | 6 | Saloon | 2005-2009 |
| S-CLASS (W221) S 320 CDI 4-matic (221.080, 221.180) | OM 642.932 | 2987 | 173 | 6 | Saloon | 2006-2013 |
| S-CLASS (W221) S 350 (221.056, 221.156) | M 272.965 | 3498 | 200 | 6 | Saloon | 2005-2013 |
| S-CLASS (W221) S 350 4-matic (221.087, 221.187) | M 272.975 | 3498 | 200 | 6 | Saloon | 2008-2013 |
| S-CLASS (W221) S 400 Hybrid (221.095, 221.195) | M 272.974 | 3498 | 205 | 6 | Saloon | 2009-2013 |
| S-CLASS (W221) S 420 CDI (221.028, 221.128) | OM 629.911 | 3996 | 235 | 8 | Saloon | 2006-2009 |
| S-CLASS (W221) S 450 (221.070, 221.170) | M 273.922 | 4663 | 250 | 8 | Saloon | 2005-2013 |
| S-CLASS (W221) S 450 4-matic (221.084, 221.184) | M 273.924 | 4663 | 250 | 8 | Saloon | 2005-2013 |
| S-CLASS (W221) S 500 (221.071, 221.171) | M 273.961 | 5461 | 285 | 8 | Saloon | 2006-2012 |
| S-CLASS (W221) S 500 4-matic (221.086, 221.186) | M 273.961 | 5461 | 285 | 8 | Saloon | 2005-2013 |
| S-CLASS (W221) S 600 (221.176) | M 275.953 | 5513 | 380 | 12 | Saloon | 2005-2013 |
| S-CLASS (W221) S 63 AMG (221.077, 221.177) | M 156.984 | 6208 | 386 | 8 | Saloon | 2006-2013 |
| S-CLASS (W221) S 65 AMG (221.179) | M 275.982 | 5980 | 450 | 12 | Saloon | 2005-2013 |
| MERCEDES BENZ S-CLASS Coupe (C215) 1999/03-2006/12 | ||||||
| S-CLASS Coupe (C215) CL 63 AMG | M 137.980 | 6258 | 326 | 12 | Coupe | 2001-2006 |
| MERCEDES BENZ S-CLASS Coupe (C216) 2006/05-2013/12 | ||||||
| S-CLASS Coupe (C216) CL 500 (216.371) | M 273.961 | 5461 | 285 | 8 | Coupe | 2006-2013 |
| S-CLASS Coupe (C216) CL 500 (216.373) | M 278.920 | 4663 | 320 | 8 | Coupe | 2011-2013 |
| S-CLASS Coupe (C216) CL 500 4-matic (216.386) | M 273.968 | 5461 | 285 | 8 | Coupe | 2008-2013 |
| S-CLASS Coupe (C216) CL 500 4-matic (216.394) | M 278.920 | 4663 | 320 | 8 | Coupe | 2011-2013 |
| S-CLASS Coupe (C216) CL 600 (216.376) | M 275.953 | 5513 | 380 | 12 | Coupe | 2006-2013 |
| S-CLASS Coupe (C216) CL 63 AMG (216.374) | M 157.980 | 5461 | 400 | 8 | Coupe | 2011-2013 |
| S-CLASS Coupe (C216) CL 63 AMG (216.377) | M 156.984 | 6208 | 386 | 8 | Coupe | 2006-2013 |
| S-CLASS Coupe (C216) CL 65 AMG (216.379) | M 275.982 | 5980 | 450 | 12 | Coupe | 2006-2010 |
| S-CLASS Coupe (C216) CL 65 AMG (216.379) | M 275.982 | 5980 | 463 | 12 | Coupe | 2011-2013 |
About Us:
Our company specialized in auto spare parts since 2002, supply all kinds of auto parts with rich experience , proven technique. Especially for chassis parts: engine mount, control arm, brake pads, brake disc, brake caliper, bearing , hub bearing, steering rack , tir rod end, rack end, ball joint, and electrical parts: sensor, clock spring, window switch, spark plug, ignition coil, injector, fuel pump, and lots of HONDA spare parts for Accord, Civic, Crv , Fit, City, Odyssey.
We Also Supply Following Goods:
| 1 |  |
48702-60130 | REAR BEAM ARM |
UZJ200 URJ202 |
| 2 | |
48702-60140 | REAR BEAM ARM |
UZJ200 URJ202 |
| 3 | |
48706-60030 | REAR BEAM ARM |
FZJ80 HZJ81 |
| 4 | |
48655-60030 | LOWER ARM | RZJ120 KDN215 |
| 5 | |
48654-60030 | LOWER ARM | RZJ120 KDN215 |
Contact us:
If you have any questions, please feel free to contact with us. We would be very glad to help you. We will get back to you within 24 hours or get back to you immediately.
