| Place of Origin: | CHINA |
|---|---|
| Brand Name: | MHC AP |
| Certification: | IS09001 TS16949 Intertek |
| Model Number: | 93490-2A300 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Neutral Packing or As Requirement |
| Delivery Time: | 2-5 work days, mainly depends on the quantity |
| Payment Terms: | T/T Western Union Paypal |
| Supply Ability: | 3000 pcs per month |
| Part No.: | 93490-2A300 | Part Name: | Air Bag Clock Spring |
|---|---|---|---|
| Car Model: | Hyundai | Condition: | Brand New |
| Material: | Plastic | Size: | OEM Standard |
| Warranty: | 1 Year | ||
| High Light: | 93490-2A300 Automotive Clock Spring,Spiral Cable Automotive Clock Spring |
||

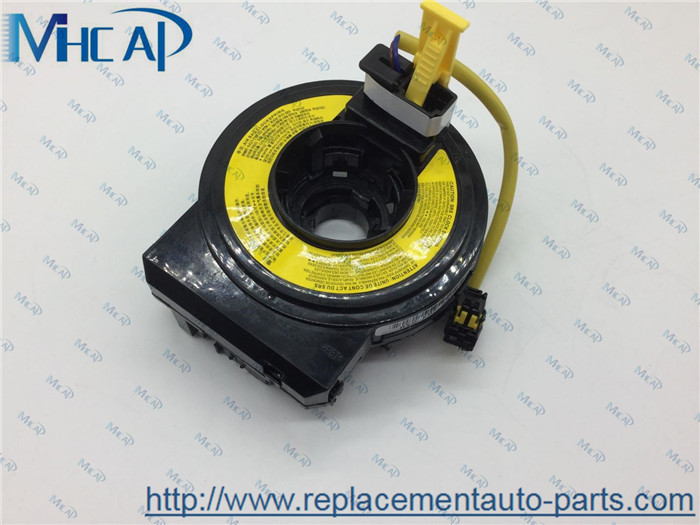

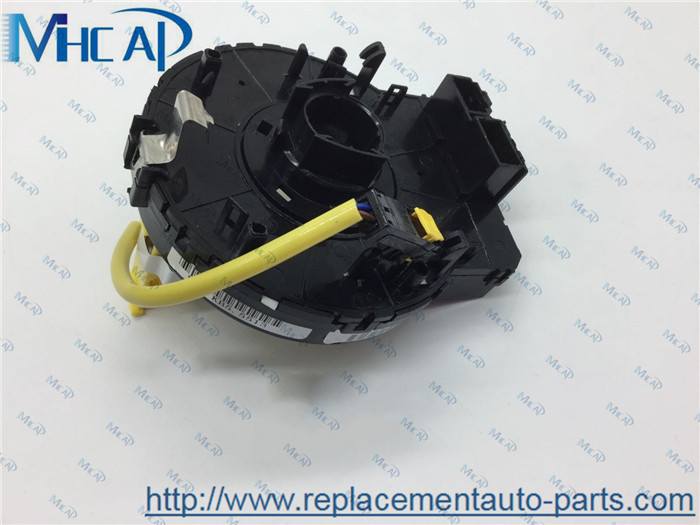

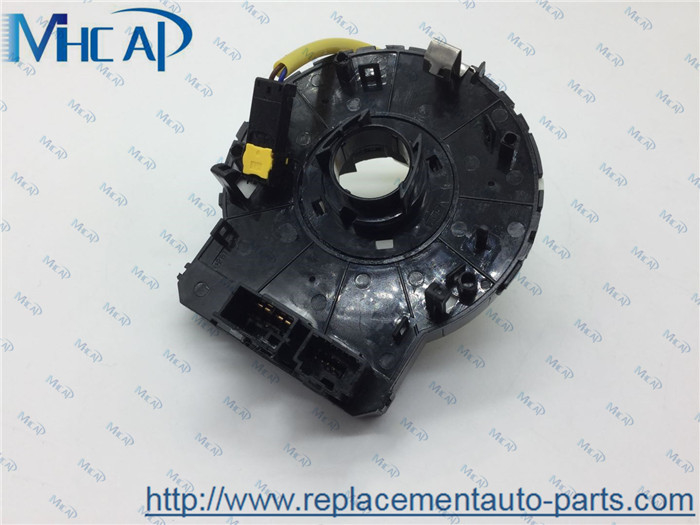

OEM 93490-2A300 Air Bag Clock Spring Spiral Cable Assembly For Hyundai
Specifications:
| Part Name: | Air Bag Clock Spring |
| Part Number: | 93490-2A300 |
| Car Model: | Hyundai |
| Size: | OEM Standard |
| Material: | Plastic |
| Color: | Black |
| Wire: | 1 Wire |
| Function: | Steering |
| Placement on Vehicle: | Inside of Steering Wheel |
| Package: | Bubble Bags Inner , Box Outer |
| Condition: | New |
| Warranty: | 1 Year |
| Certification: | IS09001 TS16949 Intertek |
| MOQ: | 1 piece If the goods in stock |
| Delivery Date: | 2-5 work days, mainly depends on the quantity |
What is Airbag Clock Spring:
Hundreds of car parts work together to allow the driver control over the vehicle. The clock spring is one of those parts that works directly with the steering wheel. It allows the car's wheel to be turned in a circle while maintaining an electrical connection with the wiring system.
How to determine if the Airbag Clock Spring is malfunctioning?
Unusual noise when turning the steering wheel in either direction, intermittent electrical connections to the steering wheel mounted controls or the SRS light illuminated on the dash are all indicators that the clockspring has malfunctioned. Testing should only be performed with an appropriate diagnostic tool to determine the cause of the problem. Removal should be done by a professional and only after the battery has been disconnected followed by a timed electrical system discharge.
Airbag Clock Spring Fuctions:
The wires from the airbag electrical system connect through the base of the clock spring's electrical connector to the end of the conductive ribbon. The other end of the ribbon is attached through the wires on the top of the clock spring's electrical connector to the air bag unit. As the steering wheel revolves, the conductive ribbon coils and uncoils allowing electrical contact between the electrical systems.
Clockspring for Other Car Model:
| 93490-2H300 | HYUNDAI | ELANTRA H |
| 93490-2H200 | HYUNDAI | ELANTRA L |
| 93490-38001 | HYUNDAI | SONATA |
| 93490-2E000 | HYUNDAI | TUCSON |
| 93490-2D000/ 93490-26000 | HYUNDAI | ELANTRA |
| 93490-2M000 | HYUNDAI | IX35 H |
| 93490-2M300/ 93490-1X000 | HYUNDAI | IX35 L |
| 93490-3K600 | HYUNDAI | SONATA 2013 |
| 93490-3K620 | HYUNDAI | SONATA 2013 2WIRE |
| 93490-3R110 | HYUNDAI | VERNA H |
| 93490-1G210 | HYUNDAI | ACCENT |
| 93490-1E300 | HYUNDAI | K5 |
| 93490-2B200 | HYUNDAI | ELANTRA |
| 93490-3S110 | HYUNDAI | SONATA 8 |
| 93490-2G400 | HYUNDAI | SANTAFE 1WIRE |
| 93490-2G500 | HYUNDAI | SANTAFE 2WIRE |
| 93490-2B100 | HYUNDAI | SANTAFE |
| 93490-2P170 | HYUNDAI | SORANTO |
Part can be found as reference 93490 in illustration:
Our Service
Our Minimum Order Quantity (M.O.Q)
The stock is sufficient and can be ordered in any quantity.
If there are no spare parts in stock, the minimum order quantity is generally 100.It depends on the type of different products.
Our Quality Control.
100% raw material inspection and testing before mass production.
100% test and confirmation of samples before mass production.
100% test before shipment.
